ACKCIO TILTMETER NODE

CODE : N625
p to 50 nodes and 12 hops with AES-128 end-to-end encryption.
  • The BEAM-TM operates autonomously using a high-capacity Li-SOCl₂ D-cell battery, delivering multi-year performance depending on sampling frequency and transmission settings.
  • Configuration, setup, and data diagnostics are handled through Ackcio Nimbus, an Android application for quick deployment and network management.
  • The IP67-rated aluminium enclosure provides superior environmental protection, making it ideal for long-term outdoor installations in challenging site conditions.

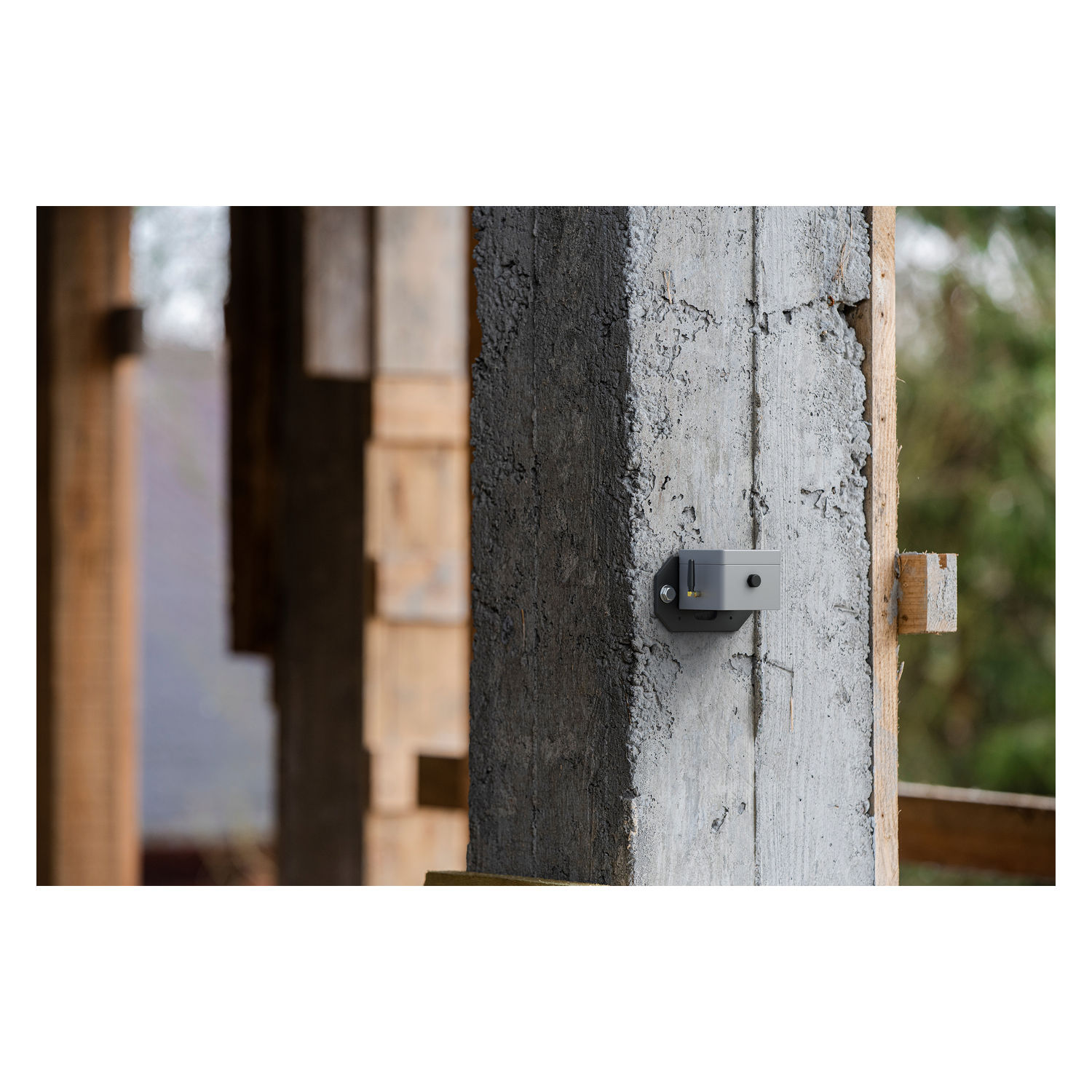

  • Mounting options include both horizontal/vertical and rail mounting plates, designed for flexible installation and secure alignment in any orientation.

    • PRINT DATASHEETprintcard

    ADD TO QUOTEaddtoquotecard

    entry
    entry
    entry
    TECHNICAL SPECIFICATIONS
    ORDERING INFORMATION
    TECHNICAL SPECIFICATIONS
    • Sensor Type: Sisgeo self-compensated MEMS inclinometer
    • Measurement Axes: Biaxial
    • Measurement Range: ±15°
    • Accuracy: ±0.003° (for ±2.5°, ±5.0°, ±10° ranges); ±0.01° (for ±15° range)
    • Resolution: 0.0001°
    • Temperature Offset: ±0.003°/°C (−20 °C to +80 °C)
    • Thermistor Range: −20 °C to +80 °C (3 kΩ sensor)
    • Thermistor Resolution: 0.1 °C
    • Thermistor Accuracy: ±0.5 °C (0 °C to +50 °C)
    • Radio Band: ISM 863–870 MHz / 902–928 MHz
    • Transmit Power: Up to 1 W (30 dBm)
    • Modulation: 2-GFSK
    • Data Rate: 50 kbps
    • Network Capacity: Up to 50 nodes, 12 hops
    • Range: Up to 5 km (line-of-sight), 1 km (urban), 500 m (subsurface)
    • MCU: Arm® Cortex®-M3 48 MHz, 32-bit CPU
    • Memory: 128 KB flash, 20 KB SRAM, 8 MB external flash
    • Clock: High-precision RTC (10 ppm, −40 °C to +80 °C)
    • Interfaces: USB 2.0 (Micro B, 5 V, 500 mA max), LED indicators (SYS, SENS), buttons (TEST, RESET, FORMAT)
    • Operating Temperature: −40 °C to +80 °C
    • Enclosure: Die-cast aluminium, IP67 rated
    • Power Supply: 2.7–4 V DC internal battery
    • Internal Battery: 1 × D-cell Li-SOCl₂ 3.6 V, 19 Ah
    • Typical Current Drain: <20 µA (idle), <100 mA (RX), <300 mA (TX)
    • Circuit Protection: Surge (60 V DC breakdown), impulse (500 V typical), reverse polarity, short-circuit, ESD 15 kV
    • Firmware: Ackcio Mesh low-power networking firmware
    • Software: Ackcio Nimbus Android setup and monitoring app
